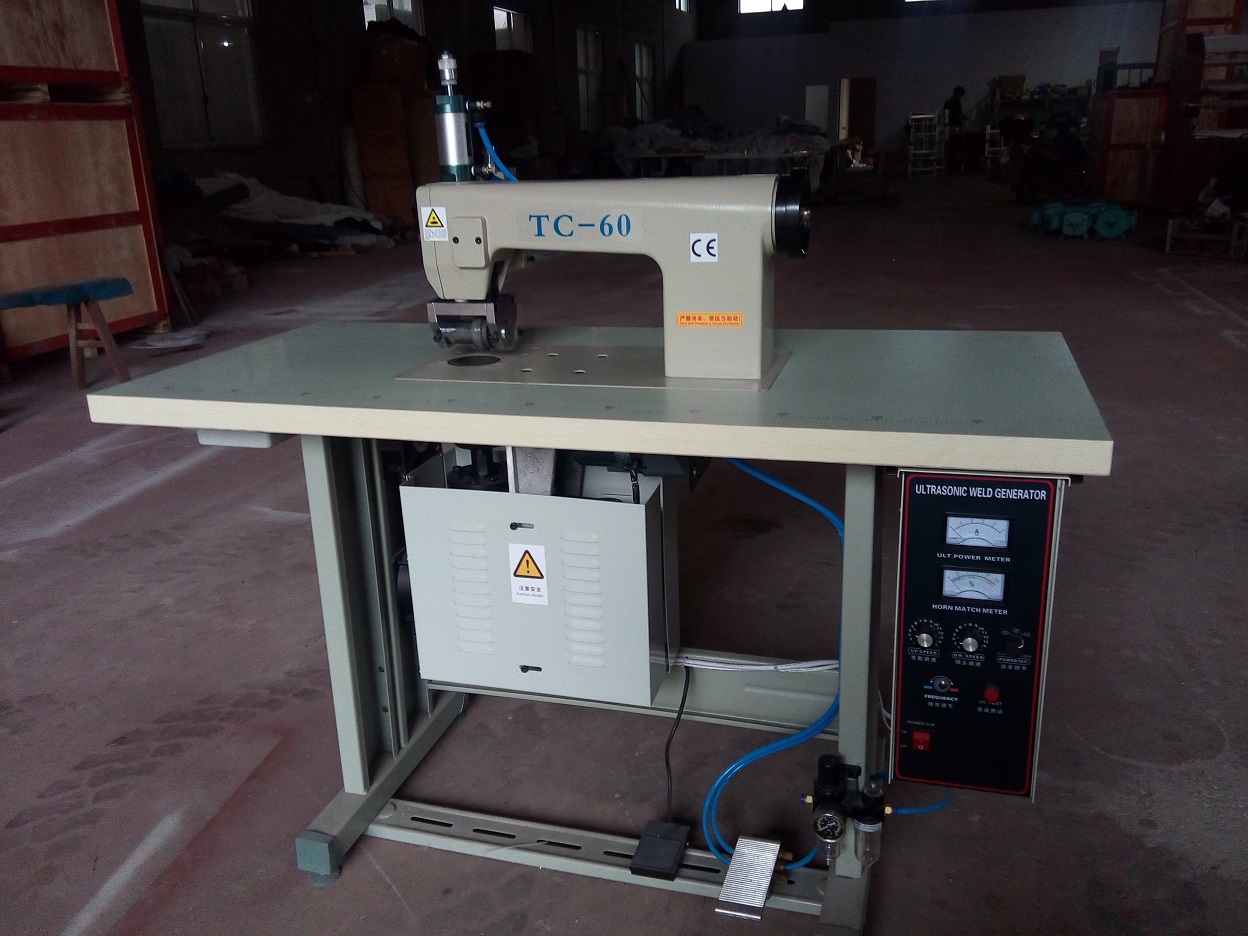

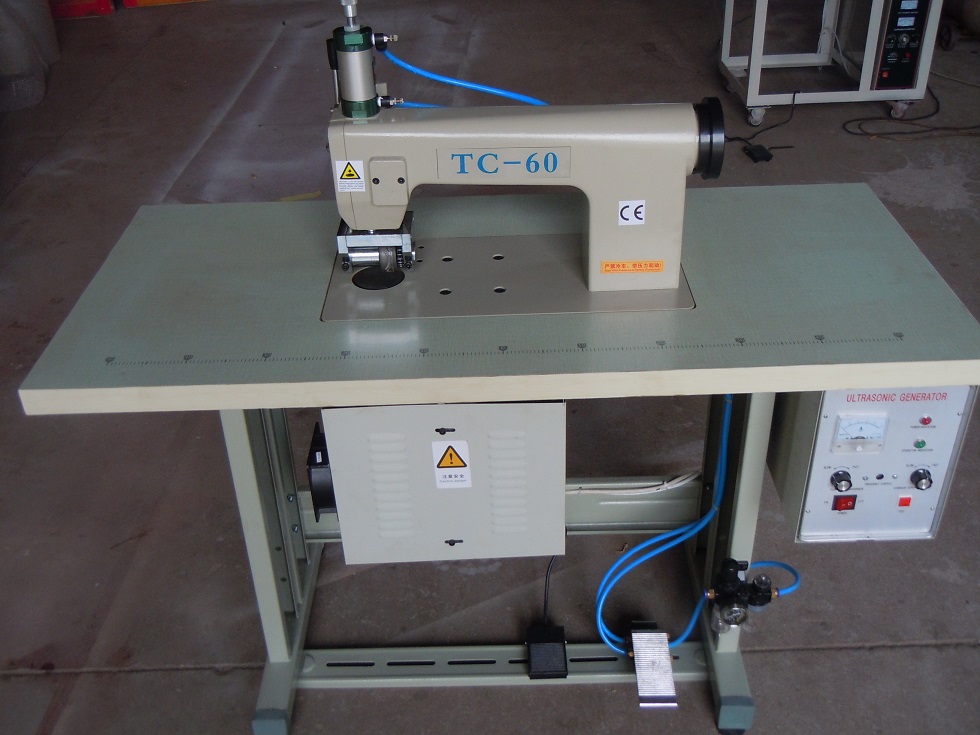

ultrasonic lace sewing machine TC-60
Ultrasonic Lace Sewing MachineParameter
Item
Ultrasonic Lace Sewing Machine(CE qualified)
Model
TC-60
Power Source
220V /110V
Inout Power
2000W (3 power adjustable)
Output Frequency
20KHZ
Working Speed
0-20M/minute
Roller Size
23MM-60MM Ø50MM
(1 inch and 2 inch standard roller)
Dimension of packing
125CM *60CM*130CM
Gross Weight
140KG
Working Temperature
-10℃-28℃
Pressure System
Air type or manual type
Feature
1.Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding
2.Eliminating traditional needle and thread.,reduce material cost and more high speed
3.No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.Continuous working for mass production
5.No smoke, spark and danger during operation
6.Easy operation realizes lowest labor cost;double motors structure
7.Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.
8.Thousands of pattern roller designs available,easily to replace
Functions
Suitable material
Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven fiber ,satin,
Thermo plastic films.and other synthetic fibre material
Application
Lace clothing,synthetic filter bag, surgical gown , hair decorations,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,,non woven bag making,shower curtain,pp woven sealing,etc
Pret: 1200 USD
Galerie foto ultrasonic lace sewing machine TC-60
Produse Echipamente croitorie
Ultrasonic Lace Sewing Machine Parameter Item Ultrasonic Lace Sewing Machine(CE qualifie...
Technical Specification Item Ultrasonic Lace Sewing Machine(CE qualified) Model TC-100...
